DynaCook X2 mini

Camper & Yacht Series ceramic gas cooktop

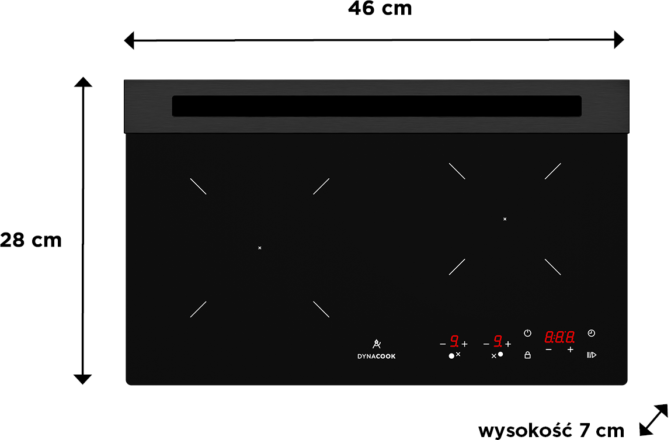

Dimensions: 460 x 280 x 70 mm
Cooktop type: gas – ceramic
Instruction and installation manual
(pdf, 3.96 Mb)
Cleaning and maintenance
(pdf, 738.59 Kb)

Material

surface: ceramic glass
color: black
exhaust finishing: black anodised aluminium

2 burners (heating zones)

  • newest Flexible Heating Zone (FHZ) generation
  • 18 cooking (power) settings

Connection

Universal setting for various types of gas:
gas in tank 30 mbar
propane/butane G30 (3B/P) lub propane G31 (3P)

Total heating power

from 2,4 kW to 2,8 kW

Power supply

12 V DC

Maximum power consumption

15 W

Sensory control

  • (touch) simple, practical, accurate, and safe
  • Clear digital cooking setting (power) display

Additional functions

  • DynaBooster – fast boil
  • Safety lock - parental control - protection from accidentally being turned on by children
  • Clear, 2-stage heat retention indicator ("H" for hot field, "h" for warm field)
  • Sound and light signaling of the cooktop operating mode

Security

  • gas escape (gas leak) signal
  • no gas supply signal

Heating zone range (diameter) (FHZ)

1 heating zone ø 105 - 150 mm (1,0 - 1,2 kW)
1 heating zone ø 130 - 200 mm (1,4 - 1,6 kW)

Weight and dimensions

Weight: 4.8 kg
Dimensions: 460 x 280 x 70 mm
Dimensions of the cut-out in the countertop: x mm
Installation height of the cooktop with baffle: mm

Gas connector

Type of gas connector:
